Besides camera lenses, Nikon also made several lines of enlarging lenses over the years. They probably do not see much use for enlarging any more, but they are still useful for close-up photography and UV photography. There are scans of several nice catalogs available from http://www.savazzi.net/.
50mm f/4, 75mm f/4, 105mm f/5.6, 50mm f/2.8, 63mm f/3.5, 135mm f/5.6

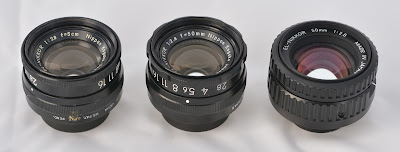

5cm f/2.8, 50mm f/2.8, and the modern 50mm f/2.8
CM marked
5cm f2.8 NKJ (there is also a very rare early "C" marked version)
40.5mm front cap
Nippon Kogaku Japan marked
50mm f2.8
40.5mm front cap. Copies with serial numbers 77xxxx marked are fairly rare.
50mm f4
34.5mm front cap. Copies with serial numbers 80xxxx are rare.
63mm f3.5
Rare, approximately 2600 made. 40.5mm front cap
80mm f5.6
34.5mm front cap. M39 and 32.5mm rear mount (under silver ring).
105mm f5.6
34.5mm front cap. M39 and 32.5mm rear mount (under silver ring). 39mm under beauty ring.
135mm f5.6
43mm front cap. M39 and 45mm rear mounting threads (under silver ring). 46mm front threads under beauty ring. Ortho-El-Nikkor copies are very rare.
210mm f5.6
Rare, approximately 1150 made. 68mm front cap. 72mm rear mounting threads, mounting plate.
Nikon marked
50mm f2.8
40.5mm front cap.
50mm f4
34.5mm front cap
63mm f3.5
40.5mm front cap.
68mm f3.5
Rare, 350 made.
75mm f4
34.5mm front cap.
80mm f5.6
34.5mm front cap. M39 and 32.5mm rear mount (under silver ring).
105mm f5.6
34.5mm front cap. M39 and 32.5mm rear mount (under silver ring). 39mm under beauty ring.
135mm f5.6
43mm front cap. M39 and 45mm rear mount (under silver ring). 46mm front mount under beauty ring.
150mm f5.6
Pretty rare, approximately 9500 made. 47mm front cap. 53mm front and rear mount. 74mm flange.
180mm f5.6
58mm front cap. 62mm front and rear mounts. 88mm flange.
210mm f5.6
68mm front cap. 72mm front and rear mounts. 98mm flange.
240mm f5.6
77mm front cap. 82mm front and rear mounts. 108mm flange.
300mm f5.6
95mm front cap. 100mm front and rear mounts. 131mm flange.
360mm f5.6
120mm front cap. 130mm mounting threads. 165mm flange
Nikon New more plastic-y lens barrels on the shorter lenses
40mm f4
40.5mm front cap.
50mm f2.8 N
40.5mm front cap.
50mm f4 N
63mm f2.8 N
40.5mm front cap.
75mm f4 N
40.5mm front cap
80mm f5.6 N
40.5mm front cap
105mm f5.6 N
40.5mm front cap
135mm f5.6 A
52mm front cap. M39 and 50mm mounting threads.
150mm f5.6 A
Rare. 52mm front cap. M39 and 50mm mounting threads
180mm f5.6 A
Rare. 67mm front cap. 72mm front and rear mounting threads. 98mm flange.
210mm f5.6 A
Rare. 67mm front cap. 72mm front and rear mounting threads. 98mm flange.
240mm f5.6 A
Rare. 86mm front cap. 90mm front mounting threads. 90mm rear mounting threads. 121mm flange.
300mm f5.6 A
Very rare. 86mm front cap. 90mm front mounting threads. 90mm rear mounting threads. 121mm flange.
360mm f5.6
Very rare.
